Why Hams Care About the Ionosphere

There are many questions concerning the ionosphere and its layers in US license exams.

T3C02-2018

Experienced hams talk about the ionosphere a lot these days and we see plenty written on the topic in amateur radio websites and magazines.  So what’s the importance of the ionosphere?

The real magic in ham radio is skywave propagation where signals can travel well beyond line of sight, even to the other side of the planet if conditions are right.  We can have two-way radio communication between Iceland and Australia and places in between because voice, video and data signals may be bent back to earth by the ionosphere.

T3A112-2018

The ionosphere is shell of electrons and electrically charged atoms and molecules (ions) that surrounds the Earth, stretching from a height of about 50 km (31 mi) to more than 1,000 km (620 mi).  Because this band is electrically active the ionosphere is able to reflect or refract electromagnetic radiation at certain frequencies, the HF bands in particular.  For most hams communicating beyond line of sight is a big deal and the ionosphere is what makes long distance (DX) contacts commonplace.

Ionosphere bending

There are two defined ionospheric layers at night and four in daytime, the difference being exposure to the sun which provides most of the energy to the ionosphere.

Ionosphere_Layers

In daylight the F layer separates into F1 and F2 regions.  Because F2 is farthest from the earth’s surface it can bend radio waves the greatest distance.

G3C03-2015

Long-distance propagation changes with day/night cycles and seasonal variance away from the equator.  There are numerous anomalies and disturbances that can affect the ionosphere.  Between all these factors the ionosphere is not a uniform shell; it has varying height, thickness, and density.  This continually changing area makes HF propagation highly variable.

Also known as skip, ionospheric propagation of shortwave (HF) radio signals travel a specific radius or skip distance from the transmitting antenna.  This makes received signals particularly strong at the skip distance.

T3A09-2018

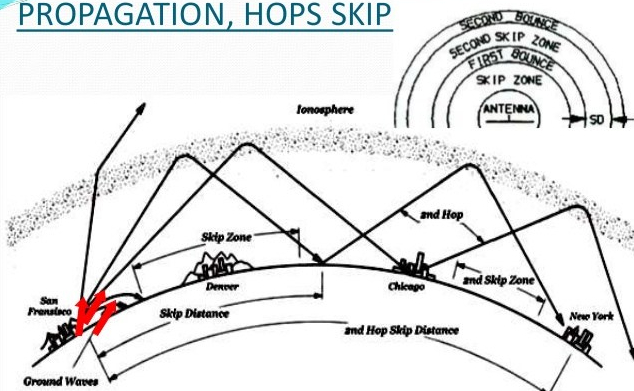

In addition to single skip distance, the earth itself can reflect/refract signals from the ionosphere back up, resulting in a secondary skip or hop and perhaps beyond that (multi-hop).   There are significant losses with each bounce, so signals get progressively weaker as they skip along.

skiphop

While we are here let’s mention a few related topics of import.

First, the useful state of the ionosphere is almost entirely dependent upon solar activity which is not constant.  There are periods of excellent skywave propagation when the sun is active and then times of poor propagation when the sun is quiet.  This is an important subject and we will present it in a future post.

Second, the specific condition of the ionosphere at any given moment affects both the lowest usable frequency (LUF) and the maximum usable frequency (MUF).  These are complex statistical values to help determine an operating frequency for communication between two points.

G3B05-2015

LUF and MUF may be presented as future NewHams topics.

Finally, various diagrams presented here show that skip distance depends in part upon the angle that a radio wave takes from its transmitting antenna.  A low takeoff angle favors greater distance while from the diagram below it is particularly evident that a high takeoff angle favors shorter range communications, the principle behind near-vertical incidence skywave (NVIS) antennas.  With NVIS the ionospheric signal bending is more acute, more like reflection than refraction.  We may also present NVIS as a future topic as it is of interest in emergency communications (EmComm).

Ionospheric prop1

Now maybe as a ham you only care about local communication, in which case the ionosphere doesn’t matter much to you.  VHF and UHF signals for local simplex and repeater use normally pass through the ionosphere into space.

T3C01-2018

Fair enough; the rest of us love and appreciate the magic of ham radio in making contacts far beyond line of sight and hopefully you now know why the ionosphere is important and why there are so many license exam questions on the subject.

We’ll leave you with this link to a 1950s-era US Army video on the subject.  It’s old and corny but technically sound (still valid) and does a great job of explaining ionospheric propagation.  Enjoy!
