Traffic

New hams listening in on a local net are likely to hear the net control station begin the session by asking for stations with traffic.  Seems like there never is traffic, so what’s that all about?

Traffic is ham-speak for passing messages, usually via regular radio nets.

T2C05

Messages are almost always formal, written on a form with bureaucratic detail.

T2C11

Even friendly, casual messages (“happy birthday, Aunt Edna”) are typically passed this way.

ARRL Radiogram

Such messages (traffic) resemble the old telegram format.  They go back to the very early days of amateur radio when passing messages was a primary function.  In fact, this is from where the US Amateur Radio Relay League (ARRL) derives its name.

Nowadays traffic is mainly an emergency communications (EmComm) function, although the occasional casual message is passed on.  Purpose-specific traffic nets meet regularly to pass messages to stay in practice for when they are really needed, like when there is a local or regional communication outage.  Likewise, local nets support traffic to maintain readiness.

The general traffic flow is from an originating station to a local net where the message is Continue reading

Packet Radio

If you’re exposed to ham radio for any length of time you are sure to hear some discussion of packet radio.

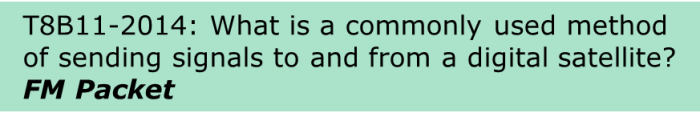

t8b11

Without going into much detail, we’ll present a big-picture description here.  Just enough for you to have a basic grasp of what’s involved and give you some idea of how it might apply to you.

Packet radio is a generalized term for a digital communication mode where data is sent in bite-sized chunks (packets) via radio.  The transmission and receipt of packet data is largely automated and features data error correction for reliable messaging.

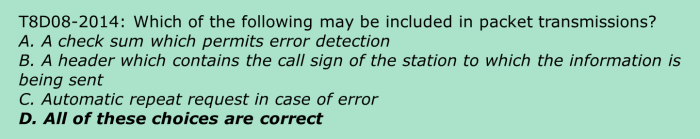

t8d08

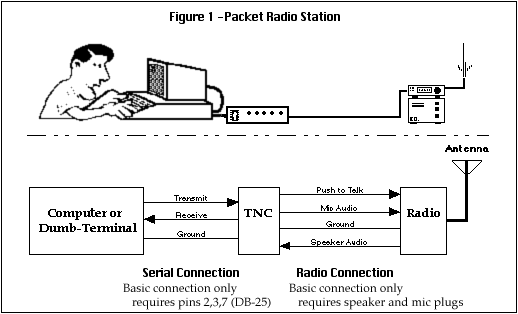

Packet radio (sometimes shortened to just packet) blends radio and computer technologies together.  Sounds complicated but it really isn’t.  All you need besides your normal ham radio transceiver is a household computer and an interface between the two.  The heart of this interface is a Terminal Node Controller (TNC) which is an intelligent modem that converts text to audio tones and vice versa.

hal-with-tnc

Reprinted with permission, 2013 Handbook; copyright ARRL

t4a06

Packet radio can be used between hams directly in real-time (peer-to-peer or keyboard-to-keyboard) but is more commonly used to send messages that can be retrieved on demand.  This operates more like email or mobile phone text messaging.

Slow data rates (typically 1200 baud) make large messages impractical, so packet messages should be relatively short and not have any large files attached.  120KB is the max message size accepted by some big message servers.  A 4KB message will transfer in 2-2.5 minutes under ideal conditions at 1200 baud.

Particularly useful for emergency communication (EmComm) messages, packet radio is predominately used on VHF radios (more local) but can be sent over HF bands Continue reading
