Using a Multimeter



DMMEvery ham should have a multimeter and know how to use it.  Multimeter use is a practical skill not only for ham radio but also around the house for general power and wiring work.  As with many topics on this site, details of the subject are too extensive to cover in a simple post so we will give you just basic info along with some resources for further study on your own.  Even with minimal detail this is still a long, involved post.

By definition multimeters measure more than one thing.  In electrical work a multimeter typically measures voltage, current, and resistance.  Sometimes it is called a volt-ohm-milliammeter or simply a volt ohm meter (VOM).  Note that these are the three fundamental electrical parameters as described by Ohm’s law.

T7D01-2018T7D04-2018T7D05-2018

In addition to measuring the three core electrical parameters, multimeters may also read other things such as temperature, frequency, capacitance, plus provide quick checks of diodes and continuity.   At minimum they will measure voltage and resistance, since these are the two most commonly read values.

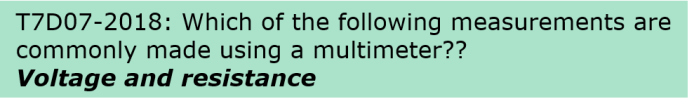

T7D07-2018

To measure voltage  you connect the meter leads between (across) two points. This parallel connection allows real-time undisturbed readings in live circuits or power sources.

T7D02-2018

Note that resistance measurements are also made with test lead parallel connections but never on live circuits; more on that below.

Measuring current with a common multimeter is more disruptive because it requires the circuit to be broken somewhere and have the meter leads inserted in-line to read amperage, and that is not often very convenient.

T7D03-2018

This series connection requirement for measuring current is the main reason it is less commonly used, and why clamp-on (non-contact) current meters are sometimes favored at the expense of accuracy and greater cost.

So what would the ham or handy homeowner need a multimeter for?  The possibilities are endless but common scenarios are testing batteries, locating blown fuses, verifying DC and AC power supply voltages, and checking cables for undesired opens or shorts.  For kit or DIY circuit builds it is also useful to verify resistor values and test active circuit voltages.  Here is a link to a list of Ten uses for a multimeter from Ham Radio School.


There are a few safety considerations to note when using a multimeter.  Two involve the test leads which connect the meter terminals to the circuit being measured.  First, the leads (probes, wires, and connectors) should be rated for at least the voltage being measured. The meter itself must also be rated to exceed this voltage.

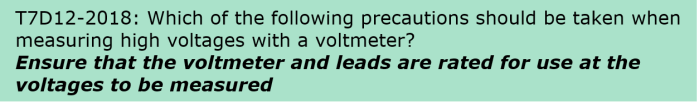

T7D12-2018

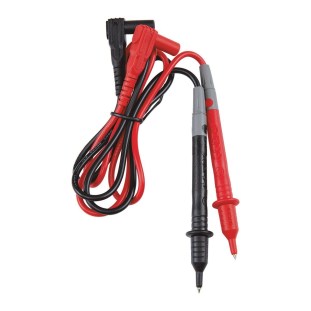

Good meter leads will have shrouded plugs, high quality flexible insulation, and finger flanges at the probe tips:

DMM LeadsThey will also be rated at least 600V as marked on the probe for general measurement below that voltage.  Special Continue reading

Dummy Load

Radio amateurs should be familiar with the term dummy load, which is a RF-friendly substitute for an antenna when testing a transmitter or piece of equipment such as a Watt meter.

Dummy1   Dummy2   Dummy3

A dummy load is somewhat generic, also having industrial and commercial uses.  As applied in ham radio, it electrically simulates an antenna to allow a transmitter to be tested without radiating radio waves, typically at 50Ω to match transmitter output impedance.

T7C01-2018

Dummy loads are rather simple—  just a big resistor and some way to dissipate heat, all in a package that must be non-reactive, meaning it provides insignificant capacitance and inductance.

T7C12-2018

Why must a dummy load be non-inductive?  Because of impedance (practically speaking, AC resistance), which increases with frequency based on the formula of inductive reactance XL=2πfL.

XL

Most common power resistors are wire-wound, which have significant inductance.  So RF dummy loads must use resistors with little or no inductance.

As an example, this four-resistor series combination using common Dale metal-clad resistors measures 49.4Ω at 0Hz (DC).  Sounds like a perfect dummy load, right?

DSCN4385

Unfortunately  it also has Continue reading
